Evolution Powersports

Can-Am Maverick R Rising Rate Fuel Pump Kits

Can-Am Maverick R Rising Rate Fuel Pump Kits

$590.00
$590.00
Sale Sold out
FUEL PUMP KIT

The EVP Rising Rate 340LPH Fuel Pump system is the foundational fuel delivery upgrade for Can-Am Maverick R owners pushing the limits of the Rotax engine. Specifically engineered for E85 fuel, this system provides the massive volume required to support approximately 400 wheel horsepower, offering significant overhead for future turbo upgrades like the P47-400.

Unlike the stock fixed-pressure system, the EVP integrated regulator can operate as a static 65 psi setup or a rising rate system, which increases fuel pressure in direct proportion to turbo boost—a mechanical necessity for high-output E85 tuning.

Core Component Technology

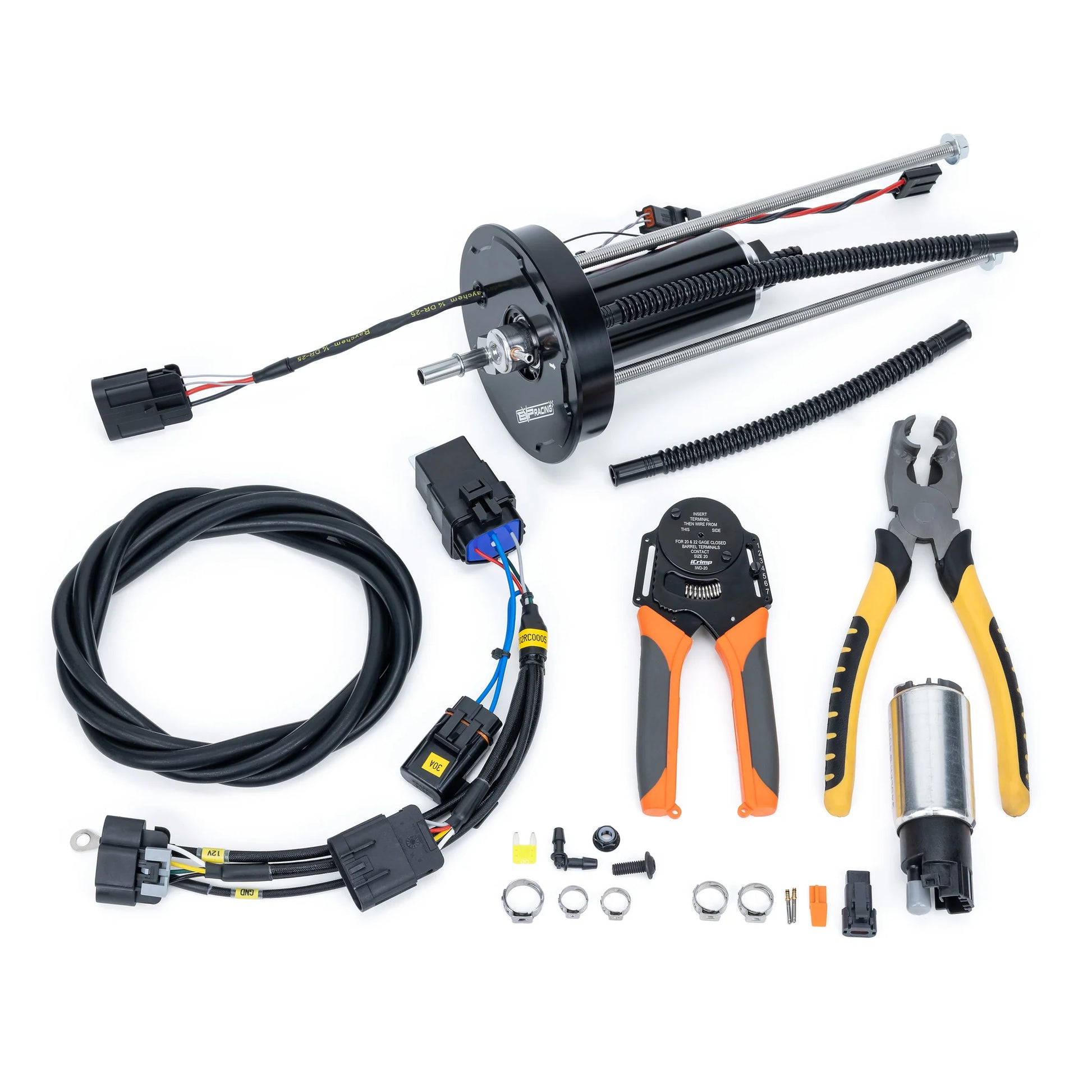

Every EVP Rising Rate kit is built with premium, race-grade hardware to ensure reliability under the high corrosive properties of ethanol:

  • DW 340LPH Fuel Pump: An E85-safe, high-flow pump capable of delivering the volume needed for high-duty cycle injectors.

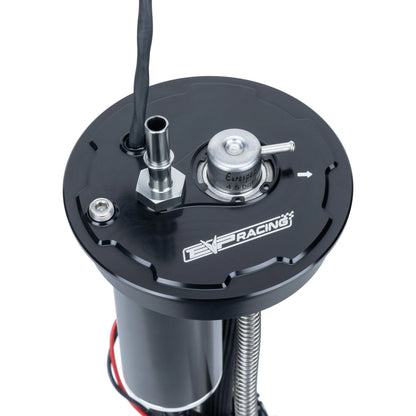

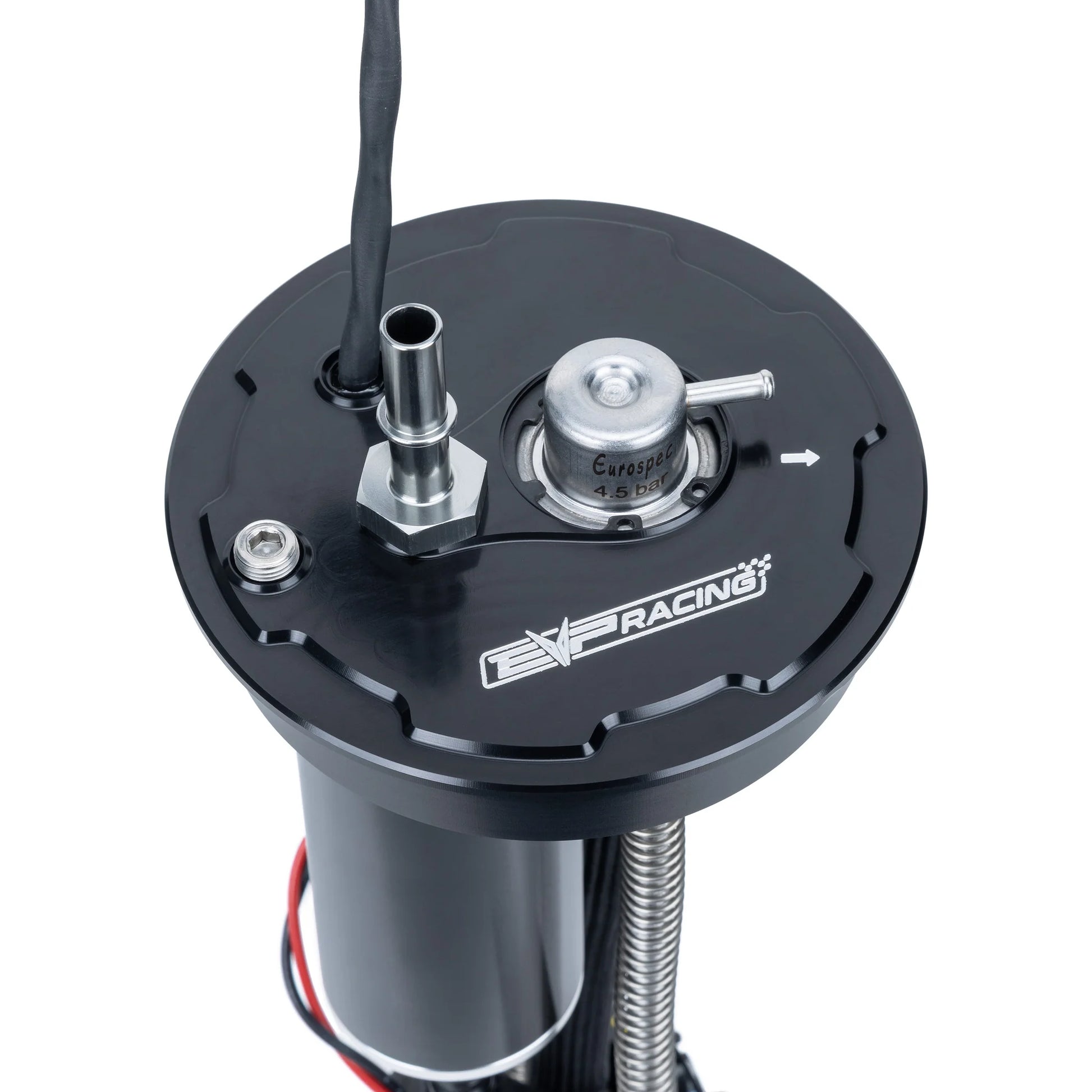

  • Billet Aluminum Fuel Hat: Replaces the factory plastic cap with a CNC-machined, black-anodized billet piece for superior strength and a leak-proof seal.

  • Serviceable Filtration: Includes a billet housing with a 100-micron stainless steel filter. Unlike the non-serviceable factory filters, this can be cleaned and reused, ensuring your injectors stay protected from debris.

  • Mil-Spec Wiring: A dedicated relay wiring harness ensures the high-draw 340LPH pump receives consistent voltage directly from the battery, bypassing the thin factory signal wires.

Configuration Options

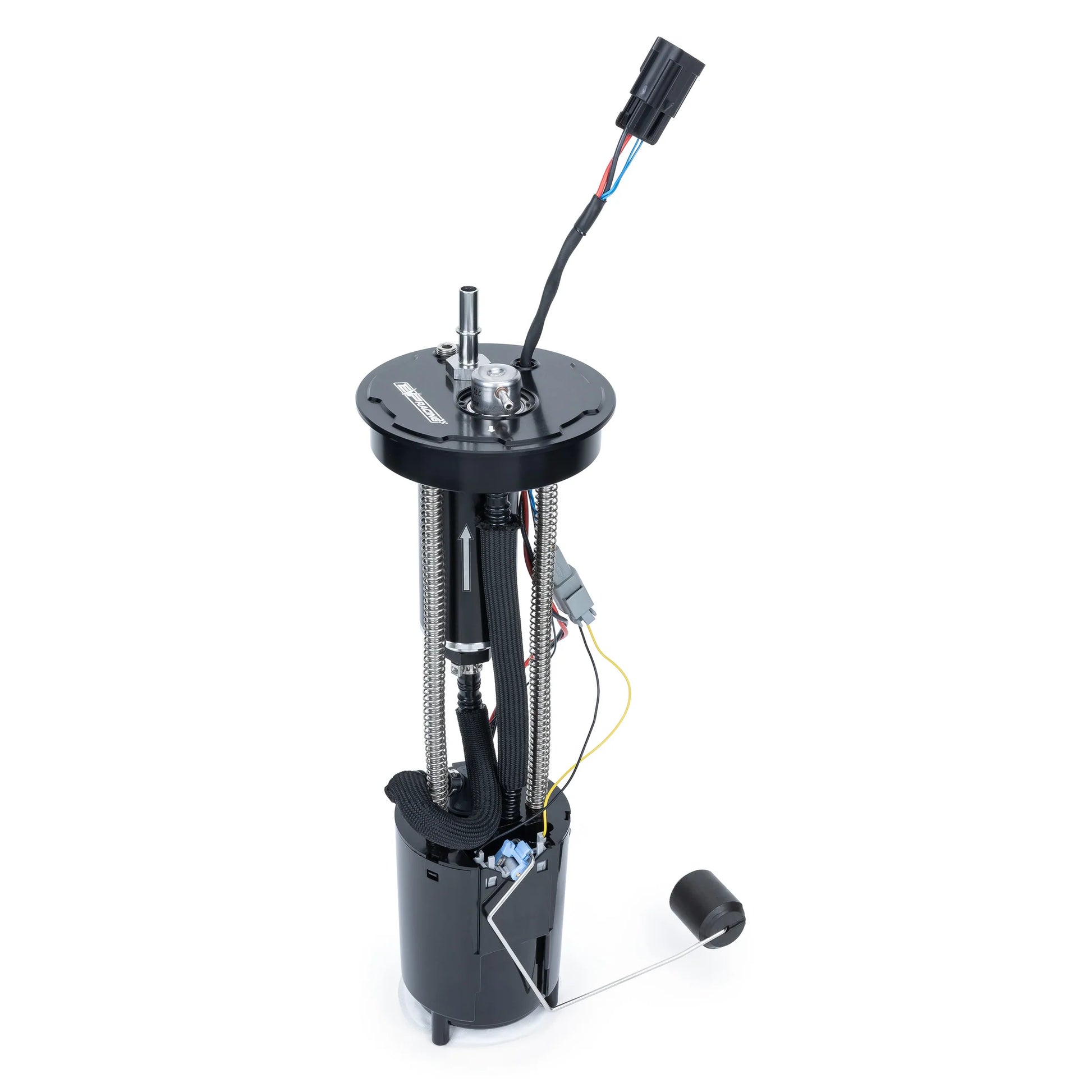

Feature Rising Rate Drop-In Assembly Rising Rate Conversion Kit
Installation Plug-and-Play Requires Mechanical Assembly
OEM Parts Full Replacement (Keep your stock unit) Reuses OEM Pickup, Float, and Gasket
Tools Needed Standard Shop Tools Includes Specialized Crimping Tools
Best For Minimum downtime & keeping a spare Budget-conscious DIY builders

Technical Specifications

  • Fuel Pressure Regulator: Integrated 4.5 Bar (65 psi) unit.

  • Tuning Requirement: Requires E85-specific tuning files (sold separately) and an EVP CodeShooter device.

  • Power Ceiling: Validated to support ~400 WHP on E85.

  • Hardware Requirement: Must be paired with an EVP Silicone Charge Tube using the dedicated boost-reference port.

Important Disclaimer

The 340LPH Rising Rate system is specifically recommended for E85 fuel applications. If you intend to stay on 91/93 pump gas, a standard high-flow pump is typically sufficient. Running a rising rate system on pump gas requires specific "Rising Rate" ECU calibrations to ensure the fuel map accounts for the varying pressure.

Pro Tip: If you choose the Conversion Kit, ensure you are working in a clean environment. Reusing the OEM fuel pickup and float requires careful disassembly to avoid damaging the delicate fuel level sender.

Would you like to see the step-by-step instructions for routing the boost-reference line from the charge tube to the fuel pressure regulator?
