EVP Auxiliary Fuel Tank Kits for Can-Am Maverick R

EVP Auxiliary Fuel Tank Kits for Can-Am Maverick R

$1,547.00
$1,547.00
Sale Sold out
CHOOSE TANK OPTION

The EVP Auxiliary Fuel Tanks for the Can-Am Maverick R are engineered for long-distance riders and racers who need to extend their range without compromising cabin comfort. While other tanks on the market force the driver into an awkward, high-seating position, the EVP system is the only one designed to allow full seat adjustability, including the lowered position favored by most drivers over 5’ 8”.

Available in Passenger-side, Driver-side, or Dual-tank configurations, this system integrates seamlessly with the factory fuel infrastructure to provide a factory-spec fit and finish.

Range & Ergonomic Features

  • Increased Capacity: Each tank holds approximately 4 gallons, meaning a dual-tank setup adds a massive 8 gallons of total fuel capacity.

  • Full Seat Functionality: Specifically designed to clear the seat frame in both raised and lowered positions. You no longer have to choose between extra fuel and a comfortable driving posture.

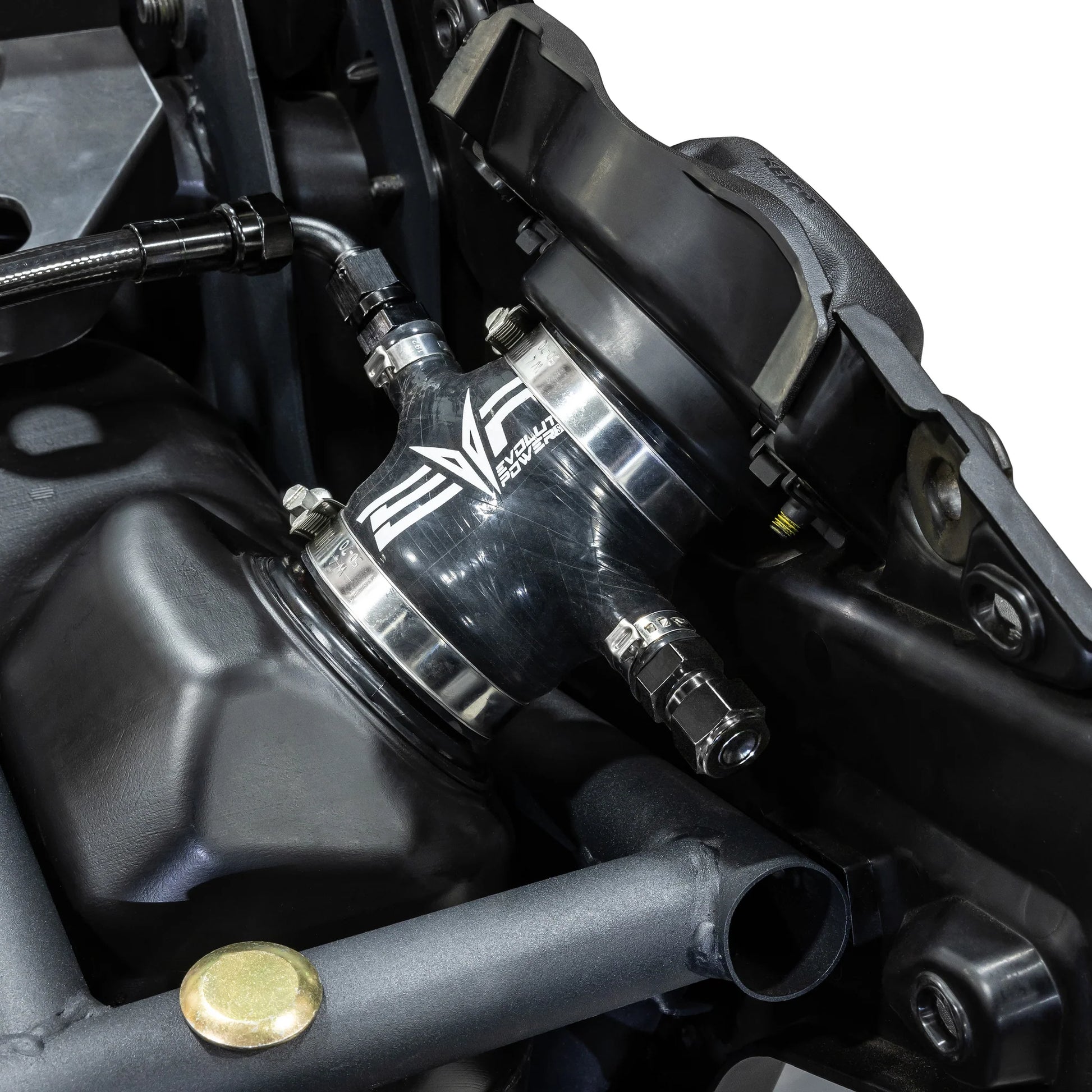

  • Rapid Refill: Utilizes high-flow 6AN PTFE hoses to ensure the auxiliary fuel transfers to the main tank quickly and efficiently.

  • Precision Fitment: Designed for a flawless "under-the-seat" installation on both 2-door and 4-door Maverick R models.

Integrated Tech & Safety

  • Dry-Run Protection: Features separate fuel float shut-off sensors for each tank, ensuring that the auxiliary pumps automatically turn off before running dry, preserving the life of the hardware.

  • Streamlined Control: Includes a single lockout switch harness that controls both tanks, eliminating the need for multiple cluttered switches on your dash.

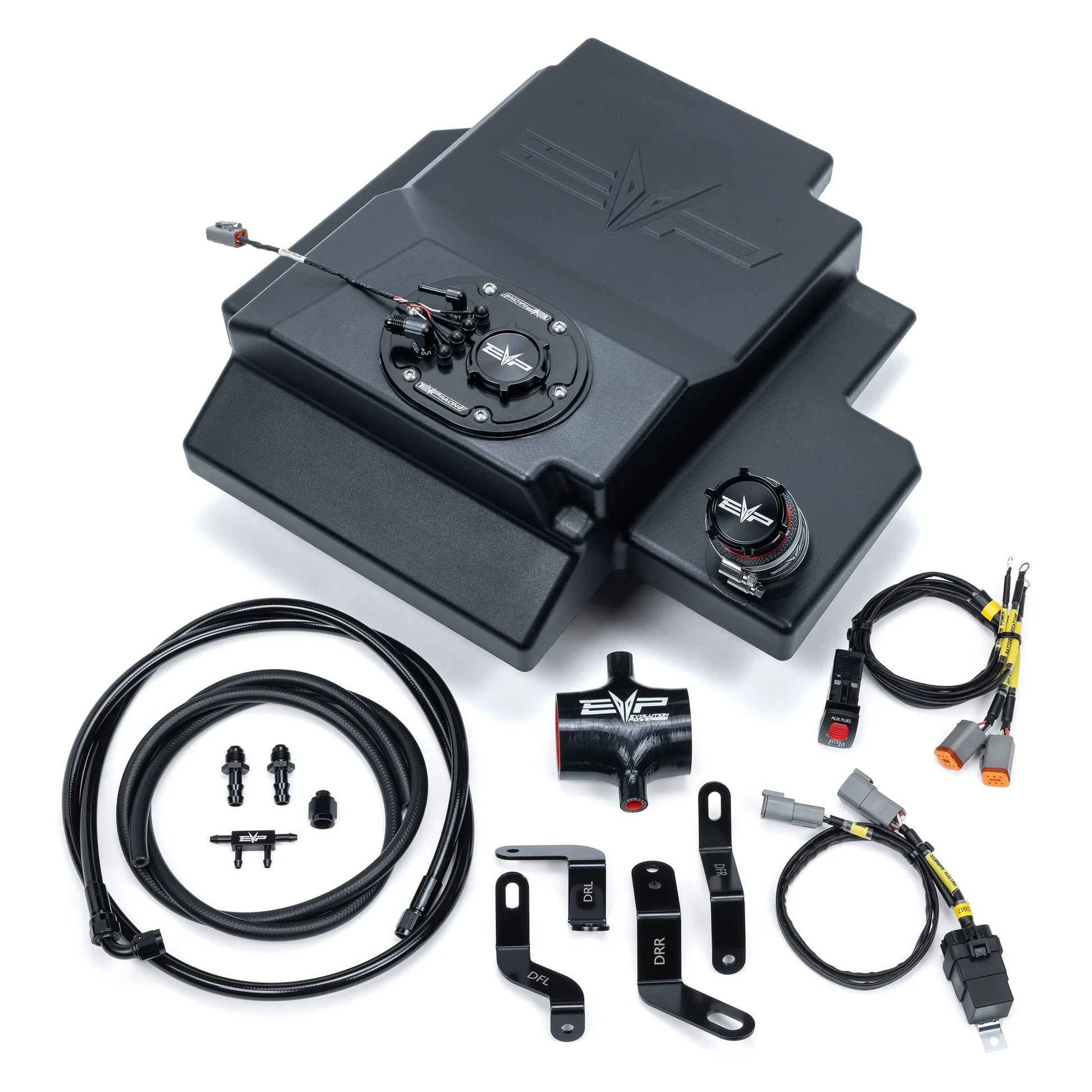

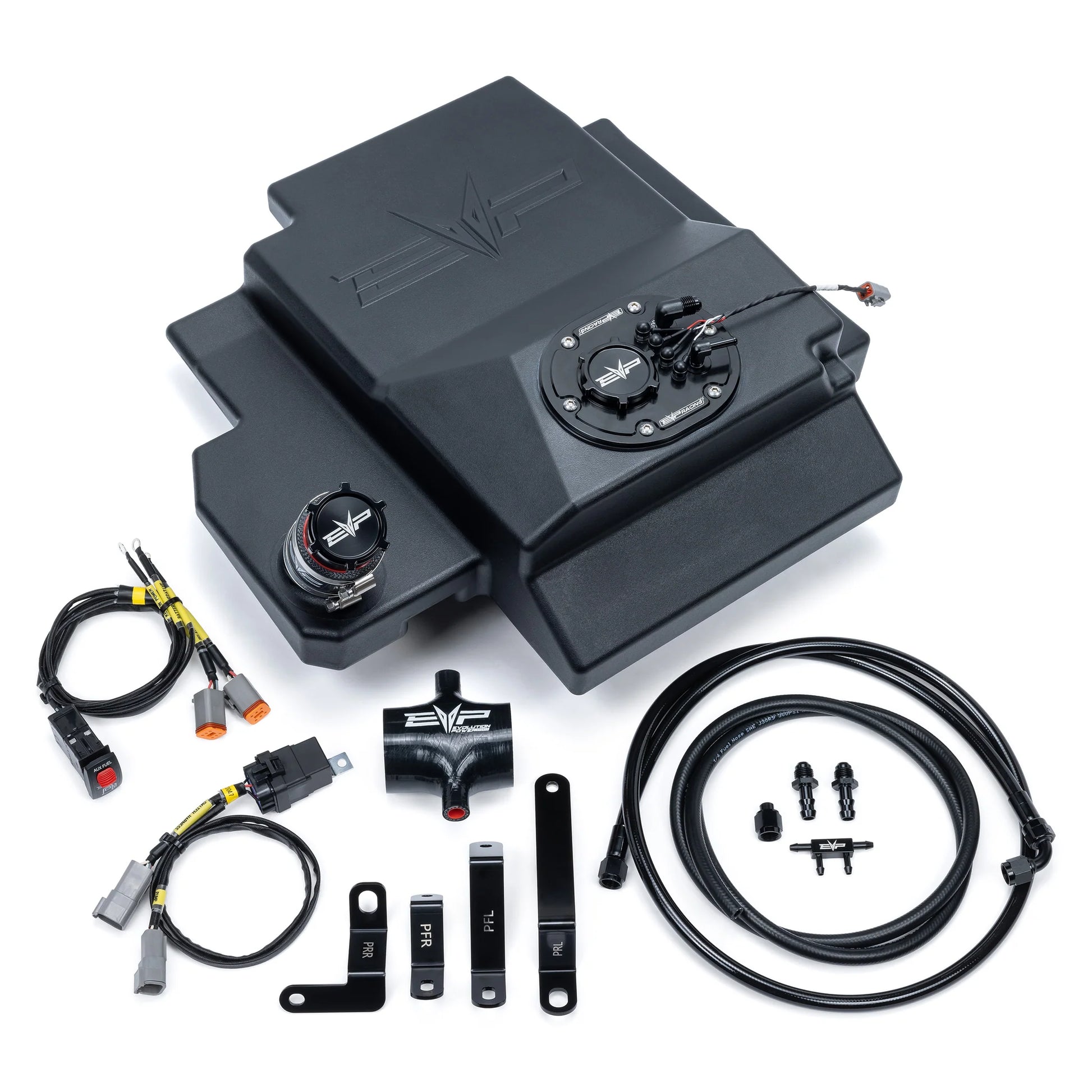

  • Billet Hardware: Each fuel pump assembly includes a premium billet fuel hat, an in-tank pump, and a dedicated fuel level float.

  • OEM Venting: The auxiliary tanks are designed to vent directly into the OEM vent tube, maintaining a sealed and safe system.

Configuration Options

Option Capacity Added Recommended For
Passenger Side Only ~4 Gallons Moderate trail rides and day trips.
Driver Side Only ~4 Gallons Solo riders or those with specific passenger-side gear.
Dual Tank Kit ~8 Gallons Extreme desert crossings and endurance racing.

Compatibility & Fitment Notes

  • Vehicle Fit: 2024+ Can-Am Maverick R (2-Seat and 4-Seat MAX models).

  • Placement: These tanks are intended for installation under the front seats only. They will not fit beneath the rear seats of a MAX model.

  • Aftermarket Seats: While designed for OEM seat frames, fitment may vary with certain aftermarket seat bases.

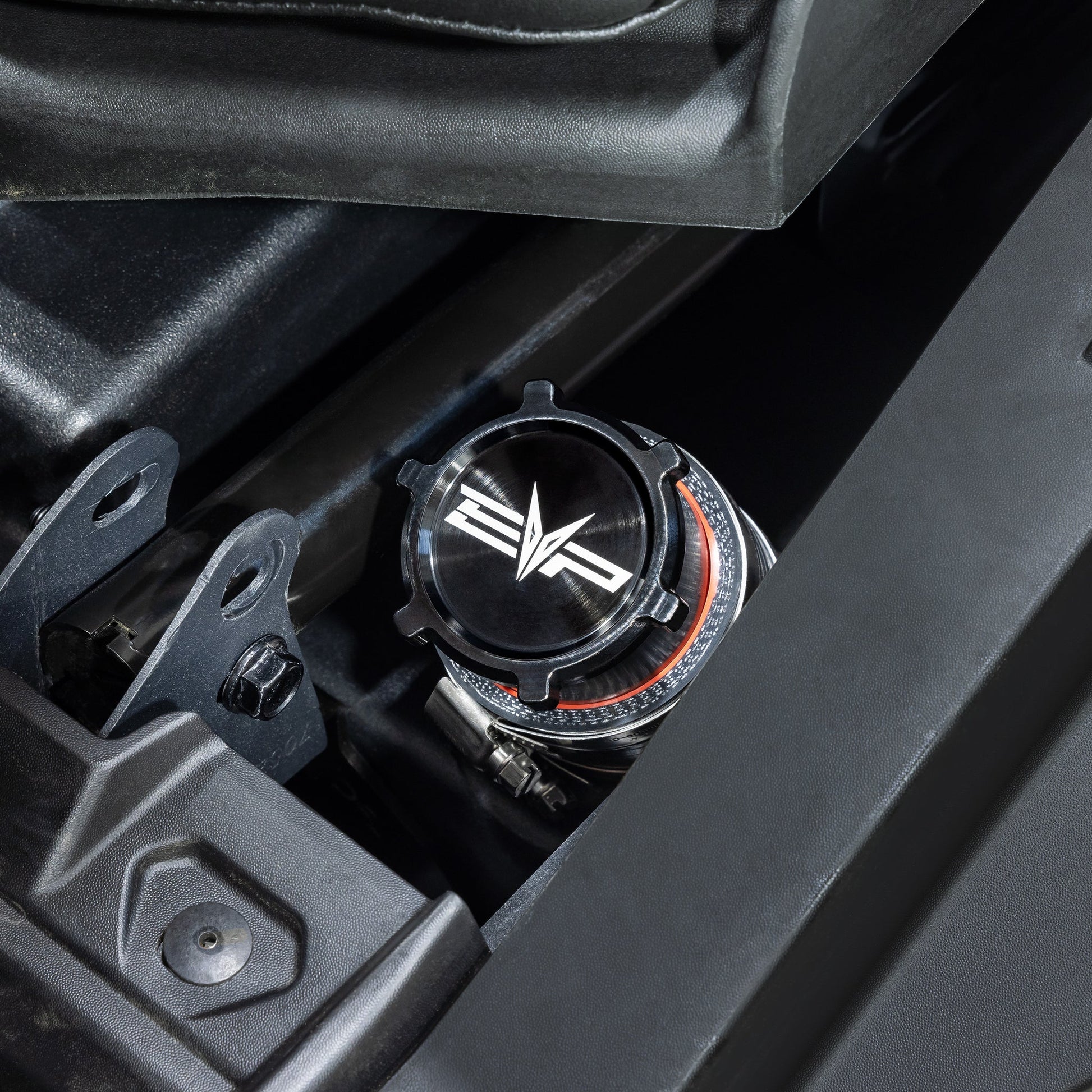

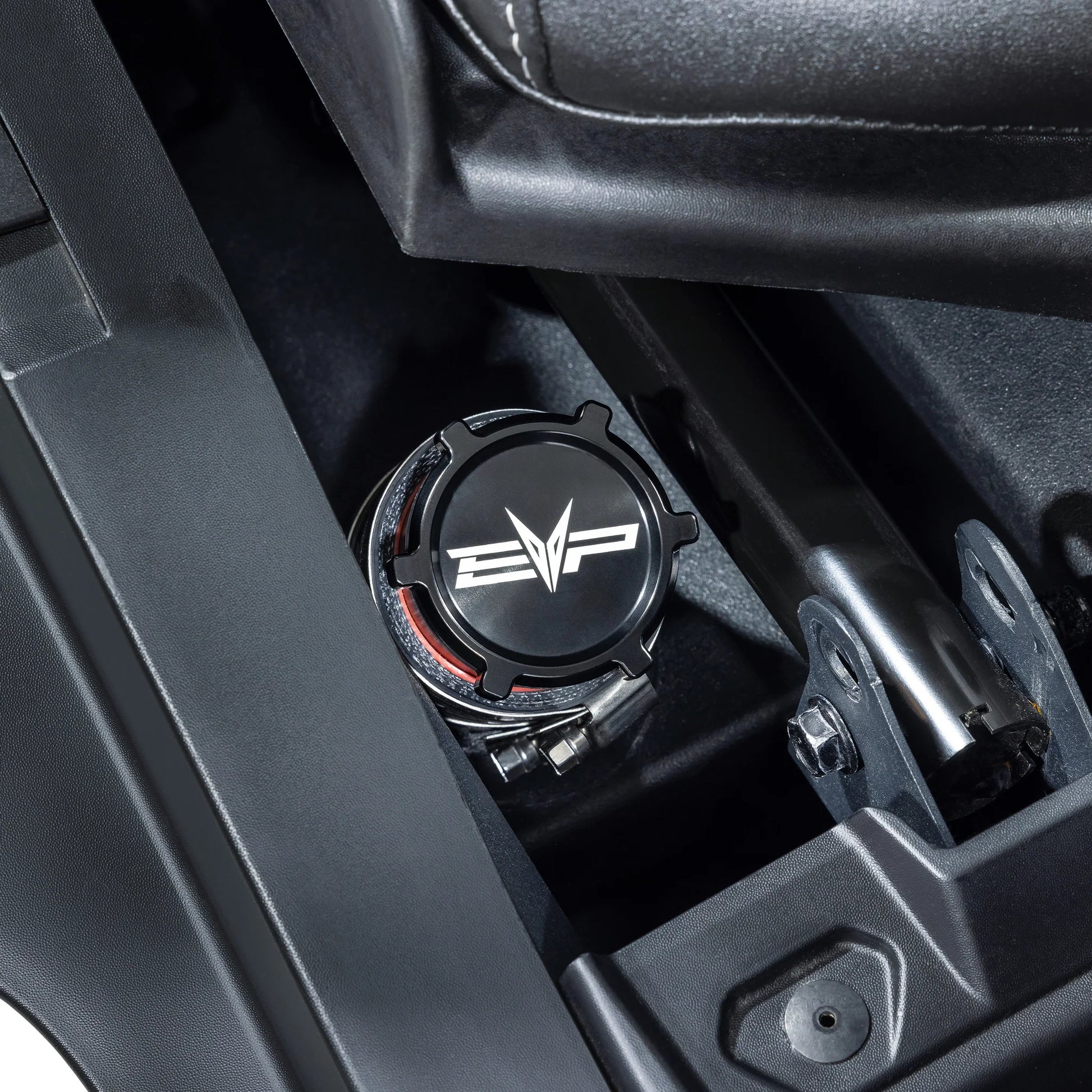

Technical Tip: The kit includes an EVP replacement filler neck for the OEM tank, ensuring that the entire fuel delivery system is upgraded to handle the additional volume and pressure of the auxiliary setup.
